Digital Isolator

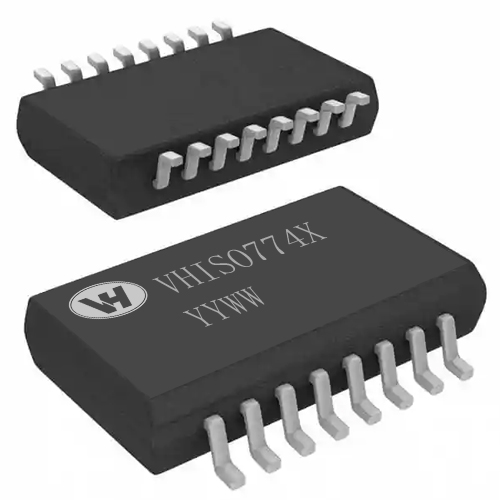

VHISO774x

VCC: 3.3V to 5.5V
Date rate: DC to 150Mbps
High CMTI: 150kV/us
Operation temperature: -40℃~125℃
Product description: The VHISOW784x & VHISO774x devices are multi-channel digital isolators with integrated isolated DC-DC converter. The isolated DC-DC converter provides up to 500mW output power using on chip transforme
INQUIRY

Key Features

 Up to 4500Vrms Insulation voltage

 Power supply voltage: 3.3V to 5.5V

 5V to 5V, 5V to 3.3V, support 100mA load current

 3.3V to 3.3V, support 60mA load current

 Over current and over temperature protection

 Date rate: DC to 150Mbps

 High CMTI: 150kV/us

 Propagation delay: <15ns

 High system level EMC performance:

Enhanced system level ESD, EFT, Surge immunity

 Operation temperature: -40℃~125℃

 RoHS-compliant packages:WB SOP16

APPLICATIONS

 Industrial automation system

 Isolated SPI, RS232, RS485

 General-purpose multichannel isolation
