Digital Isolator

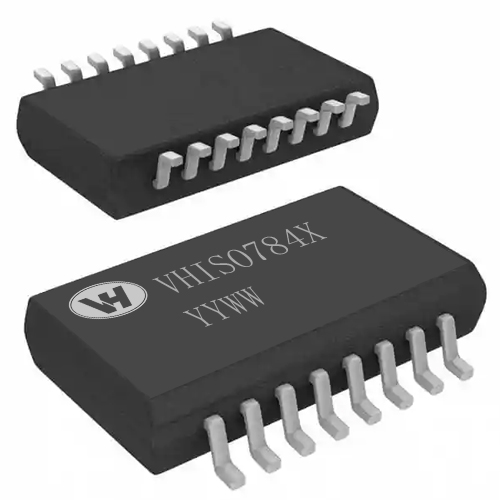

VHISO784x

VCC: 2.5V to 5.5V
Date rate: DC to 150Mbps
High CMTI: 250kV/us
Operation temperature: -55℃~125℃
Product description: The VHISO784x devices are high reliability quad- channel digital isolators. It provid high electromagnetic immunity and low emissions at low power consumption. The data rate is up to 150Mbps, and the
INQUIRY

Key Features

 Up to 8000Vrms Insulation voltage

 Power supply voltage: 2.5V to 5.5V

 Date rate: DC to 150Mbps

 High CMTI: 250kV/us

 Chip level ESD: HBM: ±8kV

 Default output high level or low level option

 Low power consumption: 1.5mA/ch (1 Mbps)

 Low propagation delay: <15ns

 Robust Electromagnetic Compatibility (EMC)

-System level ESD, EFT, Surge immunity

-Low Emissions

 Operation temperature: -55℃~125℃

 RoHS-compliant packages:

-SOP16(150mil)

-SSOP16

-SOP16(300mil)

-SOP16(600mil)

APPLICATIONS

 Industrial automation system

 Isolated SPI, RS232, RS485

 General-purpose multichannel isolation

 Motor control
