IIC Isolators

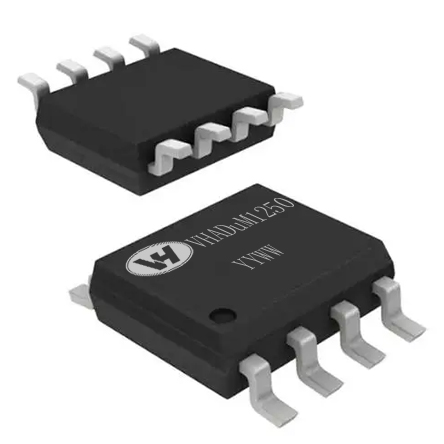

VHADuM1250

VCC: 2.5V to 5.5V
High CMTI: 150kV/us
Low propagation delay: <15ns
Operation temperature: -40℃~125℃
Product description: The VHADuM1250 devices are high reliability bidirectional isolators that are compatible with I2C interface. The I2C clock of the VHADuM1250 is up to 2MHz, and the common-mode transient immunity (CMTI)
INQUIRY

Key Features

 Up to 3750Vrms Insulation voltage

 IIC Clock rate: up to 2MHz

 Power supply voltage: 2.5V to 5.5V

 High CMTI: 150kV/us

 Chip level ESD: HBM: ±8kV

 Interlock function

 High system level EMC performance:

Enhanced system level ESD, EFT, Surge immunity

 Low power consumption: 1.5mA/ch (1 Mbps)

 Low propagation delay: <15ns

 Operation temperature: -40℃~125℃

 RoHS-compliant packages:SOP8 narrow body

APPLICATIONS

 Power over ethernet

 Isolated IIC, SMBus, or PMBus interface

 IIC level shifting

 Battery Management
