Digital Isolator

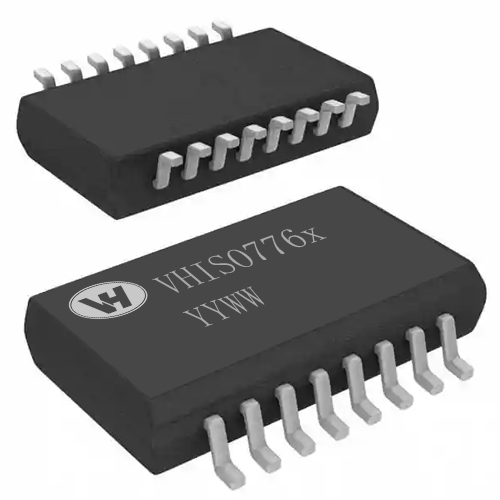

VHISO776x

VCC: 2.5V to 5.5V
Date rate: DC to 150Mbps
High CMTI: 200kV/us
Operation temperature: -55℃~125℃
Product description: The VHISO776x devices are high reliability six- channel digital isolators. The data rate of the VHD866x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 200kV/us.
INQUIRY

Key Features

 Up to 5000Vrms Insulation voltage

 Power supply voltage: 2.5V to 5.5V

 Date rate: DC to 150Mbps

 High CMTI: 200kV/us

 Chip level ESD: HBM: ±8kV

 Default output high level or low level option

 Low power consumption: 1.5mA/ch (1 Mbps)

 Low propagation delay: <15ns

 High system level EMC performance: Enhanced system level ESD, EFT, Surge immunity

 Operation temperature: -55℃~125℃

 RoHS-compliant packages:SOP16(300mil) SSOP16, SOP16(150mil)

APPLICATIONS

 Industrial automation system

 Isolated SPI, RS232, RS485

 General-purpose multichannel isolation
