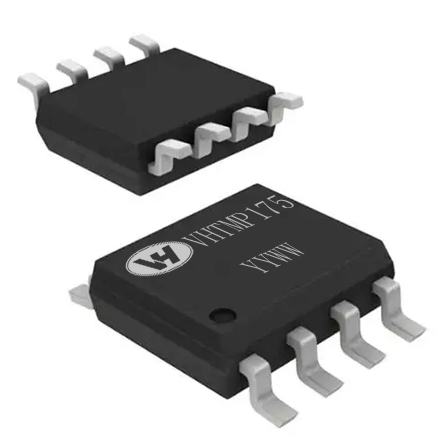

Digital Temperature Sensor

  • VHTMP175
VHTMP175

VHTMP175

  • Part No.: VHTMP175
  • VCC: 1.62V to 5.5V
  • Temperature Accuracy: ±0.5°C from -20°C to 80°C
  • Shutdown Current: 0.1uA (Typ.)
  • Product description: VHTMP175 is ± 0.5°C High Accurate Temperature Sensor with SMBus and I2C Interface
  • INQUIRY


Features

  • High Accuracy over –55°C to 125°C Wide
  • Temperature Range
-20°C ~ 85°C: ± 0.5°C (Typical)
-55°C ~125°C: ± 2°C (Maximum)
  • Proportional to Temperature with 0.0625°C Resolution
  • Power up Defaults Permit Stand-Alone
  • Operation as Thermostat
  • Supports up to 27 Device Addresses
  • Supply Operation Range from 1.62V to 5.5V
  • Operating Current: 30μA (Typical)
  • Shutdown Current: 0.1μA (Typical)
  • Digital Interface: SMBus, I2C
  • Available Package: MSOP(8) and SOP(8)



Applications


  • General System Thermal Management
  • Computer Thermal Protection
  • Portable Computers
  • Industrial Internet of Things (IoT)
  • Communications Infrastructure
  • Power-System Monitors
  • Thermal Protection
  • Environmental Detection and HVAC
