Digital Temperature Sensor

  • VHTMP432

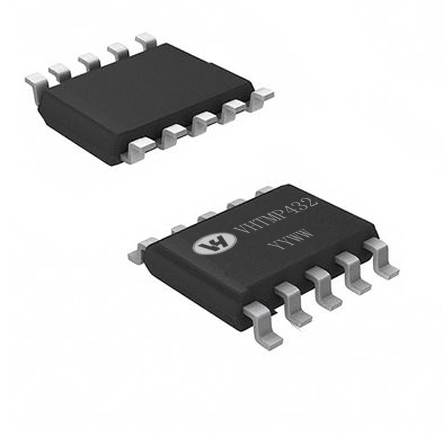

VHTMP432

VHTMP432

  • Part No.: VHTMP432ADGSR
  • VCC: 2.7V to 5.5V
  • Temperature Accuracy without calibration for each channel:±1°C from 0°C to 100°C
  • Shutdown Current: 3.0uA (Typ.)
  • Product description: VHTMP432ADGSR is a 3-channels (2-channel Remote and 1-channel Local) Temperature Sensor with ±1°C Accuracy and SMBus Digital Interface.
  • INQUIRY


Features
Operation Voltage: 2.7V to 5.5V
Average Operating Current:16uA (Typ.)at 0.0625 Con/s, Vcc = 3.3V
Shutdown Current: 3.0uA (Typ.)
Temperature Accuracy without calibration for each channel:±1°C from 0°C to 100°C
12 bit ADC for 0.0625°C resolution
Digital interface compatible with SMBus and I2C
Temperature Range up to from -64°C to 191°C by setting RANGE bit as 1
Programmable high/low-limit ALERT and THERM Temperature with Hysteresis
Automatic beta compensation, Serial Resistance Cancellation, n-Factor correction and Thermal Diode Fault Detection for each remote channel
Support SMBus ALERT Response Address (ARA)
Multiple Slave address options
Temperature Range:
-40oC to 125°C for sensor chip,
-50oC to 150°C for remote diodes
Available package: MSOP-10

Applications

Computer (Desktop &Notebook)
Server
Telecom Equipment Embedded applications
