VHLM75

Key Features

◆  VCC: 1.75V to 5.5V
◆  Temperature Accuracy:
±0.5℃(Max.) over 0℃ to 50℃
±1.0℃(Max.) over -20℃ to 85℃
±1.0℃(Max.) over -20℃ to 85℃
◆  Average Current Consumption 7.0uA (Typ.), 10uA (Max.)
(1 time measurement per second):
◆  Standby Current: 1.5uA (Typ.), 3.0uA (Max.)
◆  Temperature Conversion time: 30ms
◆  12-bit ADC with 0.0625oC Resolution
◆  Compatible with I2C, SMBus, 2-wire interface
◆  Generate 32 different slave address by setup A0/A1/A2 PIN
◆  Support SMBus ALERT Response Address(ARA)
◆  Compatible with industry LM75/TMP75 with performance improved
◆  ALERT Output for Over/Under setup temperature with programmable active High/Low

Applications
◆  Smart HVAC System
◆  Thermal Management
◆  Industry Temperature Controller
◆  PC or Server

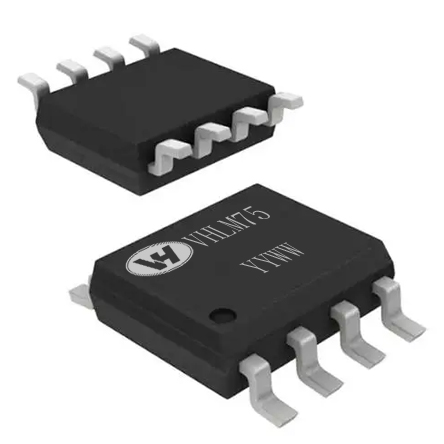

Package
◆  SOP-8
