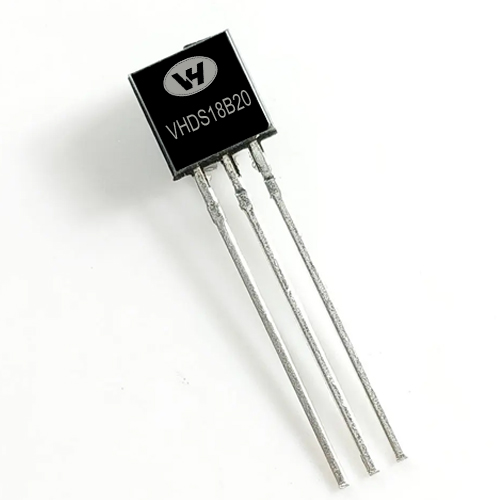

Digital Temperature Sensor

VHDS18B20+

Part No.: VHDS18B20+
VCC: 1.8V to 5.5V
Temperature Accuracy: ±0.5°C over -10°C to 80°C
Operating Current: 38uA during temperature conversion
Product description: VHDS18B20+ is a Digital Temperature Sensor with±0.5°C Accuracy over -10°C to 80°C.It is ideally used in Multi point Temperature Cable and General Temperature Monitor etc.
INQUIRY

Features

Operation Voltage: 1.8V to 5.5V
Operating Current: 38uA during temperature conversion
Average Current: 1.5uA (Typ.) at 1 Con/s
Standby Current: 0.1uA (Typ.), 1.0uA (Max.)
Temperature conversion time:30ms at 13-bit
Temperature Accuracy:
±0.5°C(Max.) from -10°C to 80°C
±1.5°C(Max.) from -50°C to 125°C
13-bit ADC for 0.0625°C resolution
Temperature Range: -50°C to 150°C

Applications

Multi point temperature cable
General Temperature Monitor
