Isolated ADC

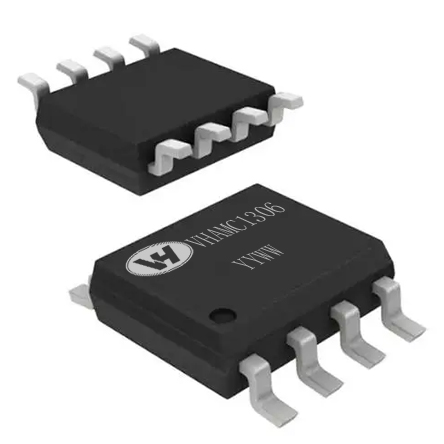

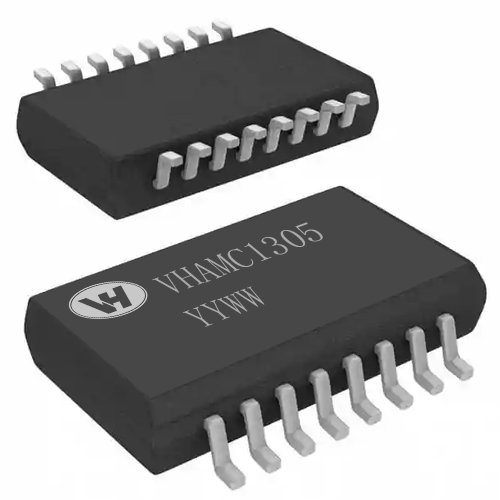

VHAMC1305 & VHAMC1306

SNR: 82.5dB or 86dB (Typ)
Clock frequency: 5MHz to 21MHz
High CMTI: ±150kV/us (Typ)
Operating Temperature: -40℃ to 125℃
Product description: The VHAMC1305 & VHAMC1306 is a high performance Σ-Δ modulator with output separated from input . The device has a linear differential input signal range of ±50mV (±64mV full-scale) or ±250mV (±320mV f
INQUIRY

Key Features

 Up to 5000VRMS Insulation Voltage

 ±50mV or ±250mV Linear Input Voltage Range

 Clock frequency: 5MHz to 21MHz

 Excellent DC Performance:

Offset Error: ±50μ V or ±100μ V (Max)

Offset Drift: -0.5~1.5μ V/℃ (Max)

Gain Error: ±0.2% (Max)

Gain Drift: ±40ppm/℃ (Max)

 SNR: 82.5dB or 86dB (Typ)

 High CMTI: ±150kV/us (Typ)

 System-Level Diagnostic Features:

AVDD monitoring

Input common-mode overvoltage detection

APPLICATIONS

 Shunt current monitoring

 AC motor controls

 Power and solar inverters

 Uninterruptible Power Suppliers(UPS)

 Automotive onboard chargers
