Isolated Driver

  • VHUCC5350 & VHUCC5320

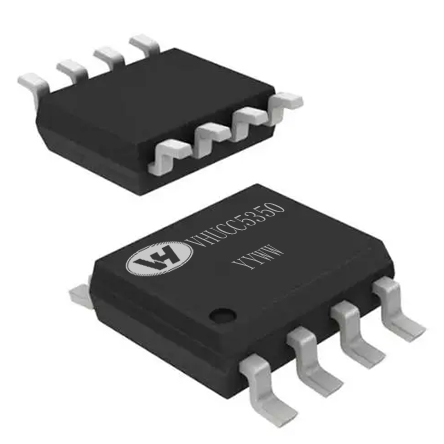

VHUCC5350 & VHUCC5320

VHUCC5350 & VHUCC5320

  • Isolated single-channel driver
  • Input side supply voltage: 3.1V to 17V
  • High CMTI: ±150kV/us
  • Operation ambient temperature: -40°C ~125°C
  • Product description: The VHUCC5350 & VHUCC5320 is a single-channel isolated gate driver designed to drive GBTs, power MOSFETs and SiC MOSFETs in many applications. It provides split outputs that control the rise and fall
  • INQUIRY



Key Features
Isolated single-channel driver
Input side supply voltage: 3.1V to 17V
Driver side supply voltage: up to 32V with 9V and 13V UVLO options
5A peak source and sink output current
High CMTI: ±150kV/us
78ns typical propagation delay
Operation ambient temperature: -40°C ~125°C
RoHS-compliant packages:
SOP8(150 mil)

SOP8(300 mil)


APPLICATIONS

DC-to-AC solar inverters
High Voltage PFC
Motor drives and EV Charging
UPS and battery chargers
Isolated DC/DC and AC/DC power supplies
