Isolated Driver

  • VHISO545x

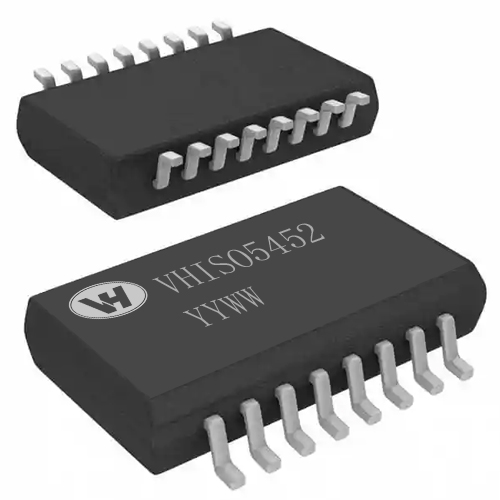

VHISO545x

VHISO545x

  • Driver side supply voltage: up to 32V with UVLO
  • High CMTI: ±150kV/us
  • 80ns typical propagation delay
  • Operation ambient temperature: -40°C ~125°C
  • Product description: The VHISO545x is a single-channel reinforced isolated smart gate driver to drive IGBTs and SiC MOSFETs inf many applications. It can source and sink 10A peak current. System robustness is supported by
  • INQUIRY



Key Features
5.7kVRMS withstand isolation voltage
SiC MOSFETs and IGBTs up to 2121Vpk
Driver side supply voltage: up to 32V with UVLO
10A peak source and sink output current
High CMTI: ±150kV/us
200ns fast response time of DESAT
Monitor status of device on FLT and RDY
80ns typical propagation delay
400mA soft turn off current
30ns maximum pulse width distortion
Internal miller clamp
Active short circuit protection
Operation ambient temperature: -40°C ~125°C

RoHS-compliant packages: SOP16(300 mil)


APPLICATIONS
Industrial Motor Drives and solar inverters
Traction Inverter for EVs
UPS and battery chargers
On-board Charger and DC/DC Converter for HEV/EVs
