Isolated Amplifier

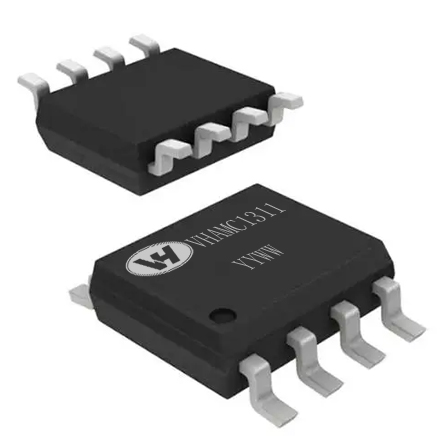

VHAMC1311

Up to 5000VRMS Insulation Voltage
±1.2V Linear Input Voltage Range
High CMTI: ±100kV/us (Typ)
Operating Temperature: -40℃~125℃
Product description: The VHAMC1311 is a cost-effective isolated amplifier with output separated from input . The device has a linear differential input signal range of ±1.2V (±1.5V full- scale). The high input impedance o
INQUIRY

Key Features

 Up to 5000VRMS Insulation Voltage

 ±1.2V Linear Input Voltage Range

 Fixed Gain : 1

 Excellent DC Performance:

Offset Error: ±5mV (Max)

Offset Drift: ±20μ V/℃ (Typ)

Gain Error: ±1% (Max)

Gain Drift: ±30ppm/℃ (Typ)

N\onlinearity: ±0.3% (Max)

Nonlinearity Drift: ±10ppm/℃ (Typ)

 SNR: 72dB (Typ)

 High CMTI: ±100kV/us (Typ)

 System-Level Diagnostic Features: VDD1 monitoring

APPLICATIONS

 AC motor controls

 Power and solar inverters

 Uninterruptible Power Suppliers(UPS)

 Automotive onboard chargers
