Isolated Driver

  • VHUCC23513 & VHSi8261 & VHTLP350F
  • VHUCC23513 & VHSi8261 & VHTLP350F
VHUCC23513 & VHSi8261 & VHTLP350FVHUCC23513 & VHSi8261 & VHTLP350F

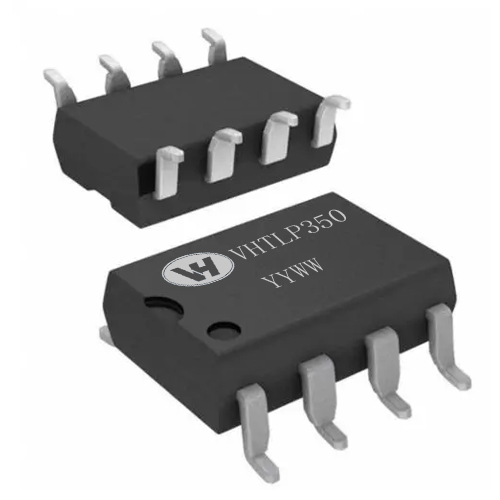

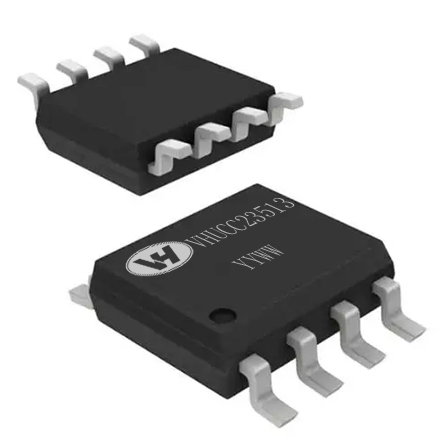

VHUCC23513 & VHSi8261 & VHTLP350F

  • Driver side supply voltage: up to 32V with UVLO
  • High CMTI: ±150kV/us
  • 75ns typical propagation delay
  • Operation ambient temperature: -40°C ~125°C
  • Product description: The VHUCC23513/VHSi8261/VHTLP350F is a single-channel isolated gate driver which is pin- compatible for popular opto-coupled gate driver. It can source and sink 5A peak current. System robustness is s
  • INQUIRY



Key Features
Isolated single-channel driver
Pin compatible, drop in upgrade for opto isolated gate drivers
Driver side supply voltage: up to 32V with UVLO
5A peak source and sink output current
High CMTI: ±150kV/us
75ns typical propagation delay
30ns maximum pulse width distortion
Operation ambient temperature: -40°C ~125°C
RoHS-compliant packages:
SOIC-6 wide body (SOW6)

DUB-8

APPLICATIONS

DC-to-AC solar inverters

Motor drives

UPS and battery chargers

Isolated DC/DC and AC/DC power supplies
