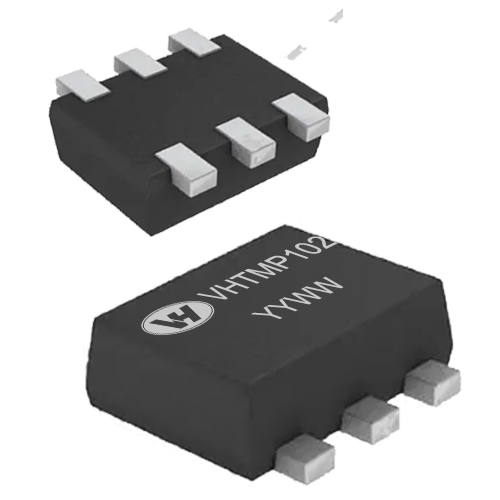

Digital Temperature Sensor

VHTMP102

Part No.: VHTMP102
VCC: 1.71V to 3.6V
High Accuracy：-20°C ~ 85°C: ±0.5°C (Typical)
Shutdown Current: 0.5μA
Product description: High Accuracy, Low-Power Temperature Sensor with SMBus and I2C Interface
INQUIRY

Key Features

 High Accuracy over -40°C to 125°C Wide

Temperature Range

-20°C ~ 85°C: ±0.5°C (Typical)

-40°C ~125°C: ±1°C (Maximum)

 Low Supply Sensitivity: 66m°C/V

 Proportional to Temperature with0.0625°C

Resolution

 Power up Defaults Permit Stand-Alone

Operation as Thermostat

 Supports up to 4 Device Addresses

 Supply Operation Range from 1.71V to 3.6V

 Operating Current:

6.5μA (Typical, 4Hz conversion cycle)

2.9μA (Typical, 1Hz conversion cycle)

 Shutdown Current: 0.5μA (Typical)

 Digital Interface: SMBus, I2C

 Package: SOT563 (6)

Applications

 General System Thermal Management

 Computer Peripheral Thermal Protection

 Notebook Computers

 Industrial Internet of Things (IoT)

 Communications Infrastructure

 Power-System Monitors

 Thermal Protection

 Environmental Monitoring and HVAC
