Digital Temperature Sensor

VHMAX31875

Part No.: VHMAX31875
VCC: 1.4V to 5.5V
Temperature Accuracy: ±1.0°C from 0°C to 80°C
Shutdown Current: 3.0nA (Typ.)

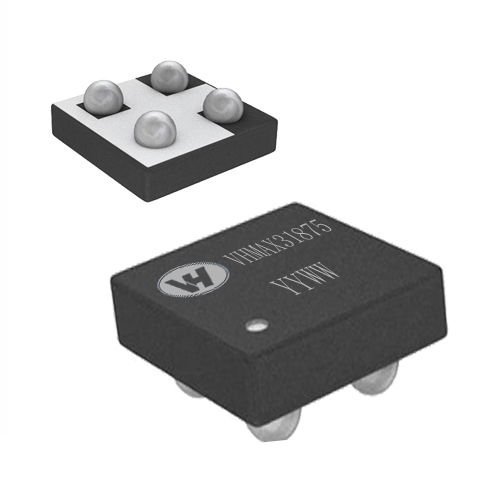

Product description: VHMAX31875 is a Digital Temperature Sensor with±1.0°C Accuracy, CSP-4 package Compatible with SMBus, I2C and 2-wire Interface.
INQUIRY

Features
Operation Voltage: 1.4V to 5.5V
Average Quiescent Current: 3uA (Typ.) at 1.0Con/s, 3.3V
Standby Current: 30nA (Typ.)
Temperature Accuracy without calibration:
Maximum:±1.0°C from 0°C to 80°C
Maximum: ±1.5°C from -40°C to 150°C
12 bit ADC for 0.0625°C resolution
Compatible with SMBus, 2-wire and I2C interface
Programmable Over/Under Temperature 8 different slave address available with different suffix
Temperature Range: -50°C to 150°C

Applications

Camera Module
SSD
Portable Devices
