Isolated Amplifier

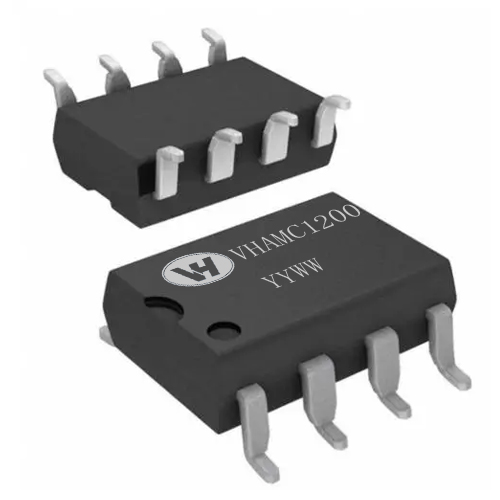

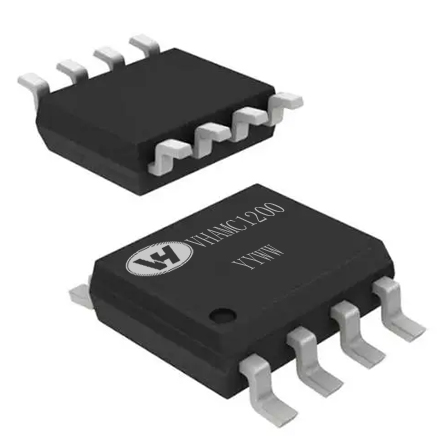

VHAMC1200

Up to 5000VRMS Insulation Voltage
±250mV Linear Input Voltage Range
Fixed Gain : 8
Operating Temperature: -40℃ to 125℃
Product description: The VHAMC1200 is a high-performance isolated amplifier with output separated from input. The device has a linear differential input signal range of ±250mV (±320mV full- scale). The differential input
INQUIRY

Key Features

 Up to 5000VRMS Insulation Voltage

 ±250mV Linear Input Voltage Range

 Fixed Gain : 8

 Low Offset Error and Drift: ±0.5mV (Max), ±4μ V/℃ (Max)

 Low Gain Error and Drift: ±0.3% (Max), ±50ppm/℃ (Max)

 Low Nonlinearity and Drift: ±0.03% (Max), ±1ppm/℃ (Typ)

 SNR: 86dB (Typ, BW=10kHz), 72dB (Typ, BW=100kHz)

 Bandwidth: 100kHz (Typ)

 High CMTI: ±150kV/us (Typ)

 System-Level Diagnostic Features: VDD1 monitoring Input common-mode overvoltage detection

APPLICATIONS

 Shunt current monitoring

 AC motor controls

 Power and solar inverters

 Uninterruptible Power Suppliers(UPS)

 Automotive onboard chargers
