IIC VOLTAGE TRANSLATOR

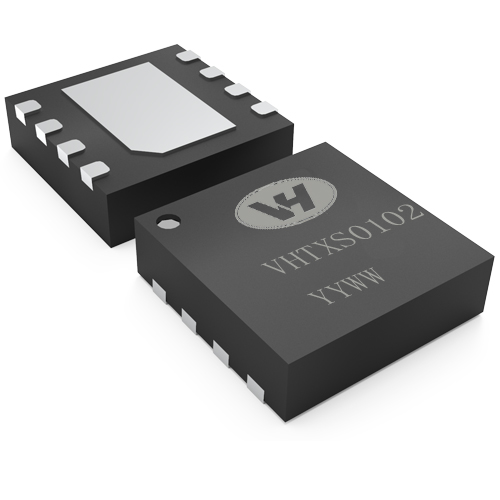

  • VHTXS0102DCU
VHTXS0102DCU

VHTXS0102DCU

  • Part No.: VHTXS0102DCU
  • Low Power Consumption
  • No Direction-Control Signal Needed
  • Temperature Range: -40°C to 85°C
  • Product description: VHTXS0102DCU is a 2-bit Bidirectional Voltage-Level Translator for Open-Drain and Push-Pull. It is ideally used in Industrial,Personal Electronics and Telecom Equipment.
  • INQUIRY


Features


VCCA Operation Voltage: 1.65 V to 3.6 V
VCCB Operation Voltage: 2.3 V to 5.5 V
VCCA must be less than or equal to VCCB, and VCCA must not exceed 3.6 V
Low Power Consumption
No Direction-Control Signal Needed
Maximum Data Rates
24 Mbps (Push Pull)
2 Mbps (Open Drain)
No Power-Supply Sequencing Required: Either VCCA or VCCB Can Be Ramped First
OE Input Circuit Referenced to VCCA
Temperature Range: -40°C to 85°C

Applications

I2C/SMBus
UART
GPIO
Telecom equipment
Industrial
Enterprise
