IIC VOLTAGE TRANSLATOR

  • VHTXS0104
  • VHTXS0104
  • VHTXS0104
VHTXS0104VHTXS0104VHTXS0104

VHTXS0104

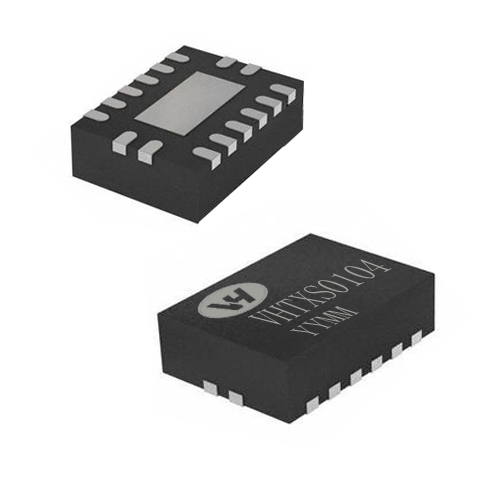

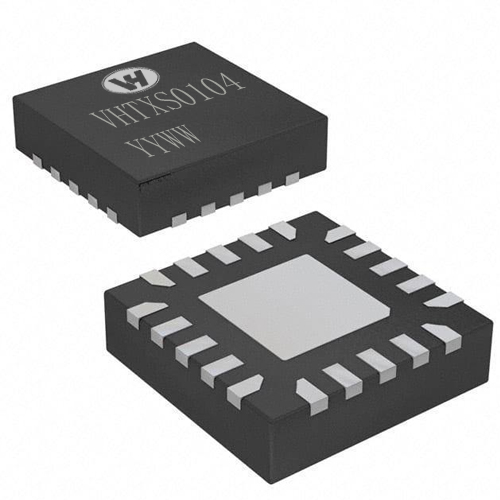

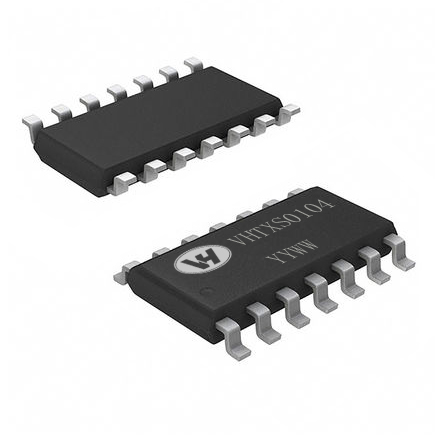

  • Part No.: VHTXS0104
  • Low Power Consumption
  • No Direction-Control Signal Needed
  • Temperature Range: -40°C to 85°C
  • Product description: VHTXS0104 is a 4-bit bidirectional voltage level translator for open drain and push pull applications. It is ideally used in industrial, personal electronics and telecom.
  • INQUIRY


Features


VCCA Operation Voltage: 1.65 V to 3.6 V
VCCB Operation Voltage: 2.3 V to 5.5 V
VCCA must be less than or equal to VCCB, and VCCA must not exceed 3.6 V
Low Power Consumption
Auto Direction-Control
Maximum Data Rates
40 Mbps (Push Pull)
2 Mbps (Open Drain)
No Power-Supply Sequencing Required: Either VCCA or VCCB Can Be Ramped First
OE Input Circuit Referenced to VCCA
Temperature Range: -40°C to 85°C


Applications

Industrial
Telecom
Data Center
PC
