IIC Switch

  • VHTCA9548
  • VHTCA9548
VHTCA9548VHTCA9548

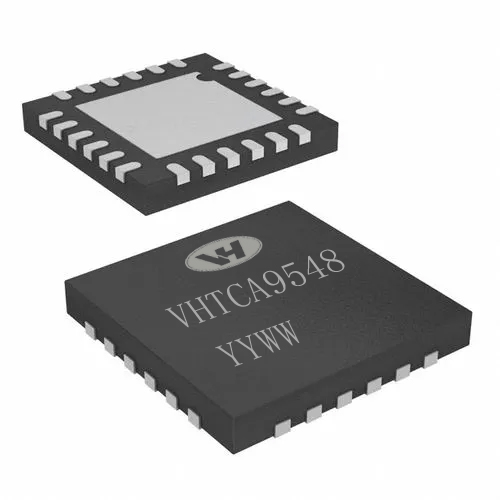

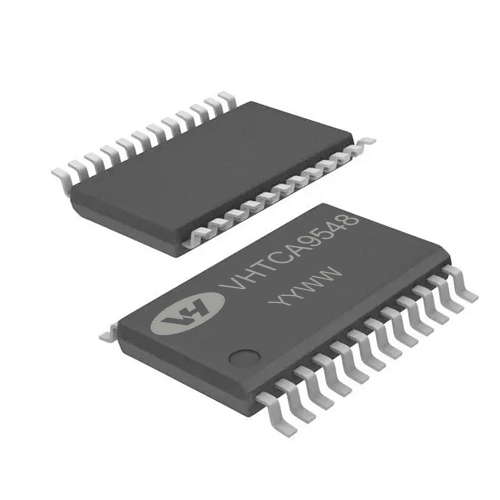

VHTCA9548

  • Part No.: VHTCA9548
  • VCC: 1.65V to 5.5V
  • Compatible with SMBus and I2C interface
  • I2C Speed up to 1.0MHz
  • Product description: VHTCA9548 is an 8-channel bidirectional translating switch with reset input controlled by I2C/SMBus. It supports one master can access one pair or any combinations of 8 pairs of slave devices via the
  • INQUIRY


Features



Operation Voltage Vcc: 1.65V to 5.5V
Standby Current: 1.5uA (Max.)
1-of-8 bidirectional translating switches between 1.8V, 2.5V, 3.3V and 5.0V
Compatible with SMBus and I2C interface
I2C Speed up to 1MHz(Fast mode Plus)
Up to 8 slave addresses
Reset input with active low
5.5V tolerant inputs
Channel0-7 or any combination selection by Control Register
Supports hot insertion
No Glitch during Power-up
Noise Filter on SCL/SDA inputs
Temperature Range: -40°C to 85°C


Applications


Servers
Telecom equipment
