Isolated CAN transceivers

VHISO1050

VDD1: 2.5V to 5.5V
Date rate: up to 1Mbps
High CMTI: ±100kV/us (Typ)
Operation temperature: -40°C ~125°C
Product description: The VHISO1050 is a isolated CAN transceiver which fully compatible with the ISO11898-2 standard. The VHISO1050 integrated two channel digital isolators and a high reliability CAN transceiver.
INQUIRY

Key Features

 Up to 5000VRMS Insulation Voltage

 ±250mV Linear Input Voltage Range

 Power supply voltage

VDD1: 2.5V to 5.5V

VDD2: 4.5V to 5.5V

 Bus fault protection of -40V to +40V

 Transmit data (TXD) dominant time out function

 Over current and over temperature protection

 Date rate: up to 1Mbps

 High CMTI: ±100kV/us (Typ)

 Low loop delay: <200ns

 High system level EMC performance: Enhanced system level ESD, EFT, Surge immunity

 Operation temperature: -40°C ~125°C

 RoHS-compliant packages:

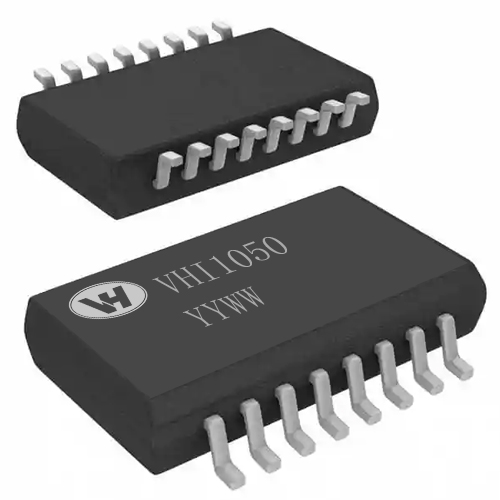

SOW16 wide body (SOP16 300mil) DUB8

APPLICATIONS

 Industrial automation system

 Isolated CAN Bus

 Telecom
