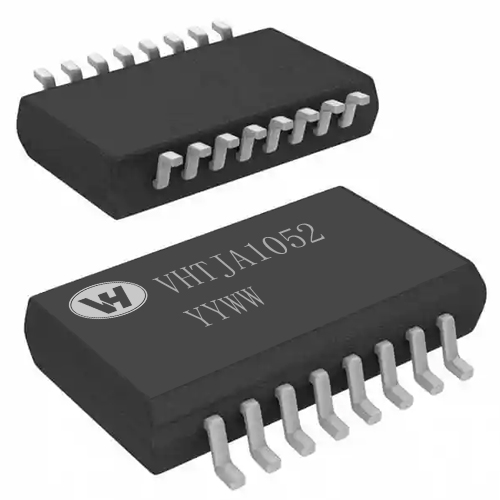

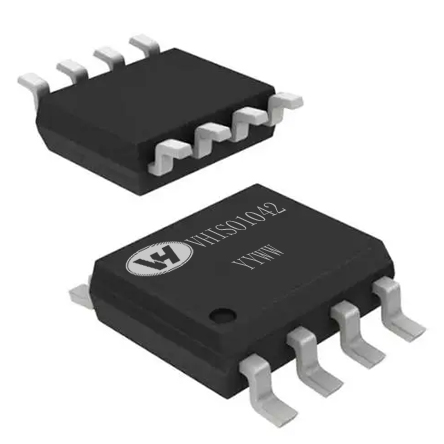

Isolated CAN transceivers

VHI1042&VHI1052

VDD1: 2.5V to 5.5V
Date rate: up to 5Mbps
High CMTI: ±150kV/us (Typ)
Operation temperature: -40°C ~125°C
Product description: VHI1042&VHI1052 is a high-reliability CAN transceiver with integrated isolated DC-DC power supply. Highly integrated solutions simplify system design and improve reliability.
INQUIRY

Key Features

 Up to 5000Vrms Insulation Voltage

 ±250mV Linear Input Voltage Range

 Power supply voltage

VDD1: 2.5V to 5.5V

VDD2: 4.5V to 5.5V

 Bus fault protection of -70V to +70V

 Transmit data (TXD) dominant time out function

 Over current and over temperature protection

 Date rate: up to 5Mbps

 Ideal passive,High Impedance Bus and Logic Terminals when unpowered

 High CMTI: ±150kV/us (Typ)

 Low loop delay: <220ns

 High system level EMC performance:

Enhanced system level ESD, EFT, Surge immunity

 Operation temperature: -40°C ~125°C

APPLICATIONS

 Industrial automation system

 Isolated CAN Bus

 Telecom
