Isolated RS485 transceivers

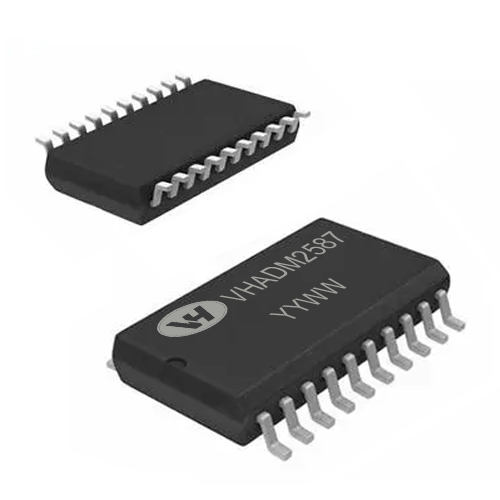

VHADM2587EBRWZ

VDD:4.5V to 5.5V
Date rate: DC to 16Mbps
High CMTI: 150kV/us
Operation temperature: -40℃~105℃
Product description: The VHADM2587EBRWZ devices are high reliability isolated full duplex RS-485 transceiver with integrated DC to DC converter.
INQUIRY

Key Features

 Up to 5000Vrms Insulation voltage

 ISO-Power integrated isolated DC-to-DC converter

 I/O voltage range supports 1.8~5.5V MCU

 Power supply voltage:

VDD:4.5V to 5.5V

VDDL:1.8V to 5.5V

 Over current and over temperature protection

 Date rate: DC to 16Mbps

 High CMTI: 150kV/us

 Up to 256 transceivers on the bus

 High system level EMC performance:

BUS Pins w.r.t to GND2 meet IEC61000-4-2 ±8kV ESD

Other Pins w.r.t to GND2 meet IEC61000-4-2 ±7kV ESD

 Operation temperature: -40℃~105℃

 RoHS-compliant packages:SOP20

APPLICATIONS

 Industrial automation system

 Isolated RS485 communication

 Smart electric meter and water meter

 Security and protection monitoring
