Hall Current Sensors

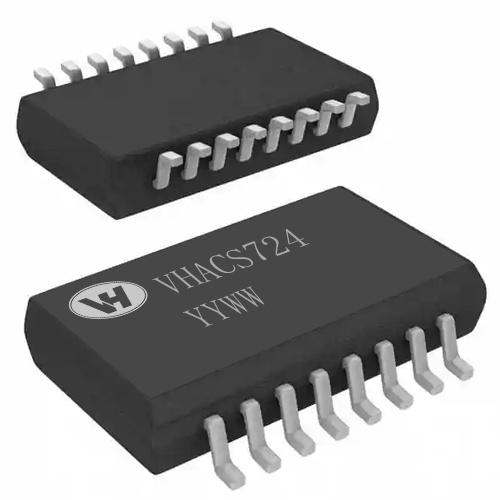

VHACS724KMATR

Hall-Effect-Based Current Sensor IC
CMTI > 100V/ns
Primary internal resistance: 0.85mΩ
240kHz bandwidth
Product description: VHACS724KMATR series is a chip-level current sensor under 100A.
INQUIRY

Key Features

 High bandwidth and fast response time

 240kHz bandwidth

 2.2us response time

 High-precision current measurement

 Differential Hall sets can immune stray field

 High isolation level that meets UL standards

 Maximum repeated isolation withstand voltage (VIORM): 1550Vpk

 Maximum working isolation withstand voltage (VIOWM): 1097Vrms

 Withstand isolation voltage (VISO): 5000Vrms

 Maximum surge isolation withstand voltage (VIOSM): 10kV

 Maximum surge current (Isurge): 13kA

 CMTI > 100V/ns

 Creepage distance/Clearance distance: 8mm

 An external capacitor on the Filter pin can reduce noise (sacrificing bandwidth)

 Ratiometric output

 Primary internal resistance: 0.85mΩ

 Operation ambient temperature: -40℃~125℃

 RoHS-compliant packages: WB SOP16(300 mil)

APPLICATIONS

 Solar system

 Industrial power supply

 Motor control

 OBC/DCDC/PTC Heater

 Charging pile
